Koolfoam Black Pearl
Koolfoam Black Pearl is a graphite-infused EPS that offers up to 30% greater thermal efficiency than normal EPS. Koolfoam Black Pearl is compliant with the latest New Zealand Building Code insulation requirements.
Featured ProductRequest A Quote
Innovation In Insulation
Koolfoam Black Pearl is one of the most effective forms of interior insulation available. With its high compressive strength, and ability to deliver High R values within thinner products, it is often considered the product of choice for interior insulation. Koolfoam Black Pearl is available in multiple size options.
Koolfoam Black Pearl is ideal for use in:

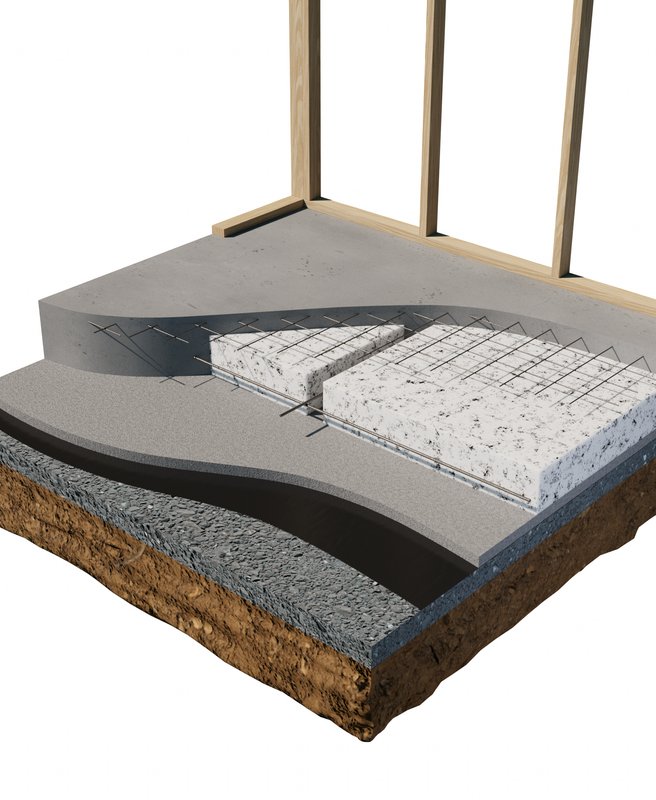

- Under slab Insulation
- Slab edge Insulation (pre coated)
- Framed cavity Insulation - Roof - Wall - Floor - EIFS (exterior insulating finishing system) Timber and steel frame
- EIFS masonry overlay (Thermal Mass solution)
- Masonry wall insulation (Interior Insulation solution) - Precast panel insulation
- Panel wall construction
- Warm roof (membrane underlay)
Koolfoam Black Pearl Specifications
Koolfoam Black Pearl is available in full sheets from 10mm to 820mm thick full blocks.
Black Pearl Masonry Wall Options: Available in 2.4 and 2.7 lengths
| Panel Width mm | Panel Width mm | Thickness mm | R Value |
|---|---|---|---|
| 355 | 555 | 40 | R1.30 |
| 355 | 555 | 45 | R1.45 |
| 355 | 555 | 50 | R1.61 |
| 355 | 555 | 60 | R1.93 |

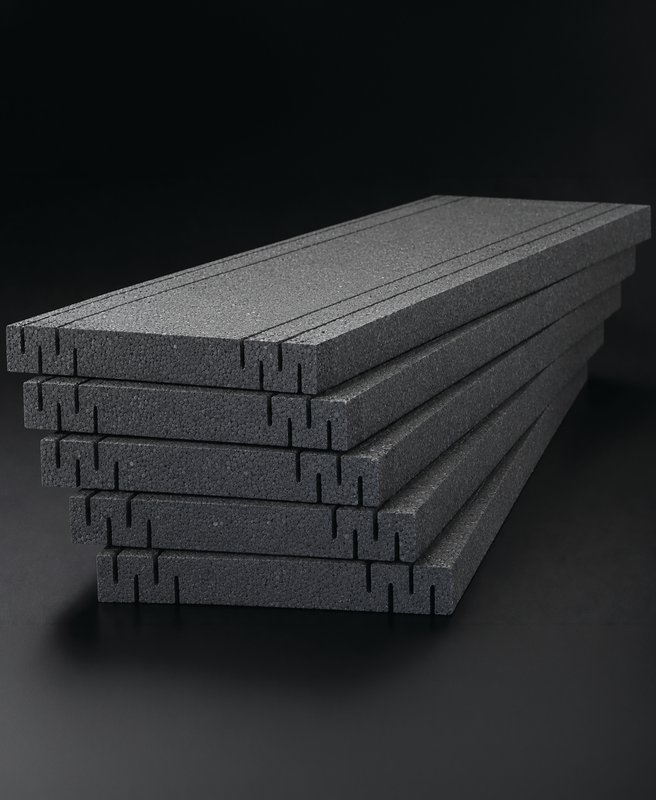

Black Pearl Cavity Wall and Mono Pitch Roof Insulation Panels: Standard panels are 1.2 long with concertina cuts for compression fit
| Panel Widths (mm) | Thickness (mm) | R Value |
|---|---|---|
| 360, 560, 860 | 70 | R2.26 |
| 360, 560, 860 | 90 | R2.90 |
| 360, 560, 860 | 100 | R3.22 |
| 360, 560, 860 | 210 | R6.77 |
Custom sizes can be made.
Black Pearl Thermal Chart
| Thickness | Black Pearl | S Grade | H Graded | VH Grade | XPS |
|---|---|---|---|---|---|
| 20mm | R0.62 | R0.52 | R0.55 | R0.57 | R0.74 |
| 25mm | R0.80 | R0.65 | R0.69 | R0.71 | R0.93 |
| 30mm | R0.96 | R0.78 | R0.83 | R0.86 | R1.11 |
| 35mm | R1.13 | R0.92 | R0.97 | R1.00 | R1.30 |
| 40mm | R1.30 | R1.05 | R1.11 | R1.14 | R1.48 |
| 45mm | R1.45 | R1.18 | R1.25 | R1.29 | R1.67 |
| 50mm | R1.61 | R1.31 | R1.38 | R1.43 | R1.85 |
| 55mm | R1.77 | R1.44 | R1.52 | R1.57 | R2.04 |
| 60mm | R1.93 | R1.57 | R1.66 | R1.71 | R2.22 |
| 65mm | R2.09 | R1.71 | R1.80 | R1.86 | R2.41 |
| 70mm | R2.26 | R1.84 | R1.94 | R2.00 | R2.59 |
| 75mm | R2.41 | R1.97 | R2.08 | R2.14 | R2.78 |
| 80mm | R2.58 | R2.10 | R2.22 | R2.29 | R2.96 |
| 85mm | R2.74 | R2.23 | R2.36 | R2.43 | R3.15 |
| 90mm | R2.90 | R2.36 | R2.50 | R2.57 | R3.33 |
| 95mm | R3.06 | R2.50 | R2.63 | R2.71 | R3.52 |
| 100mm | R3.22 | R2.63 | R2.77 | R2.85 | R3.70 |
XPS has a max thickness of 100mm, and EPS up to 820mm.
